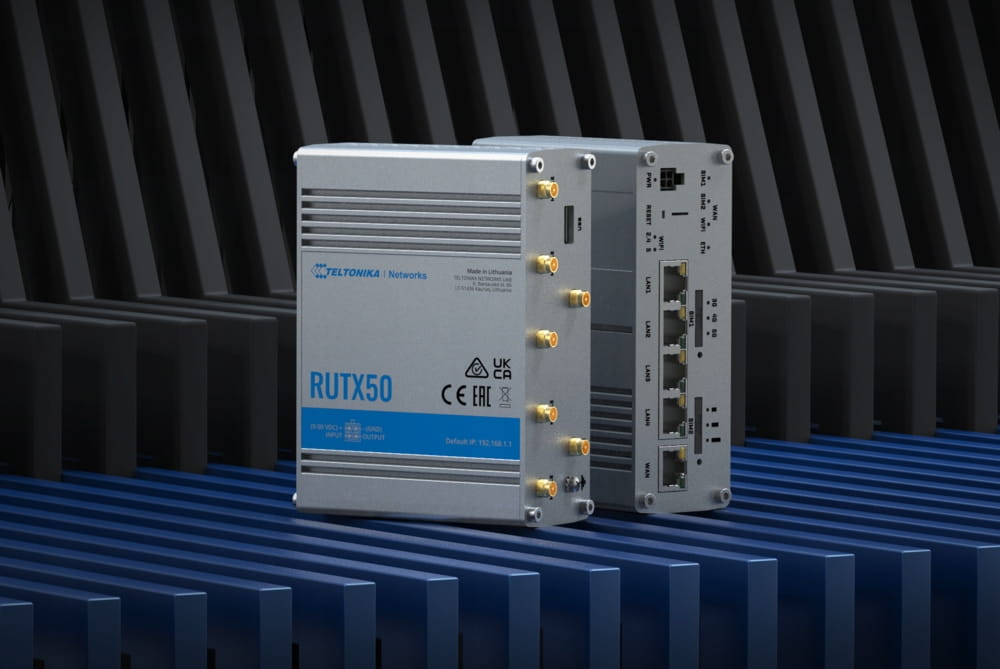

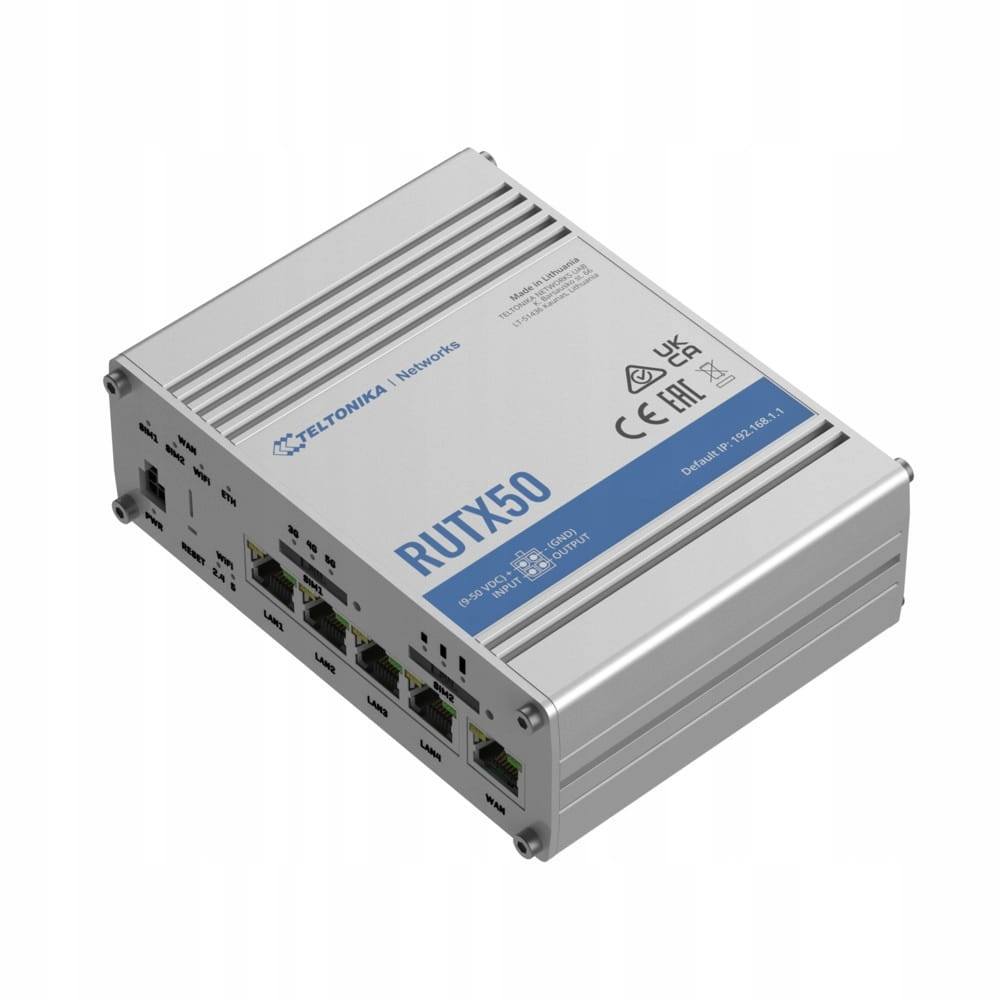

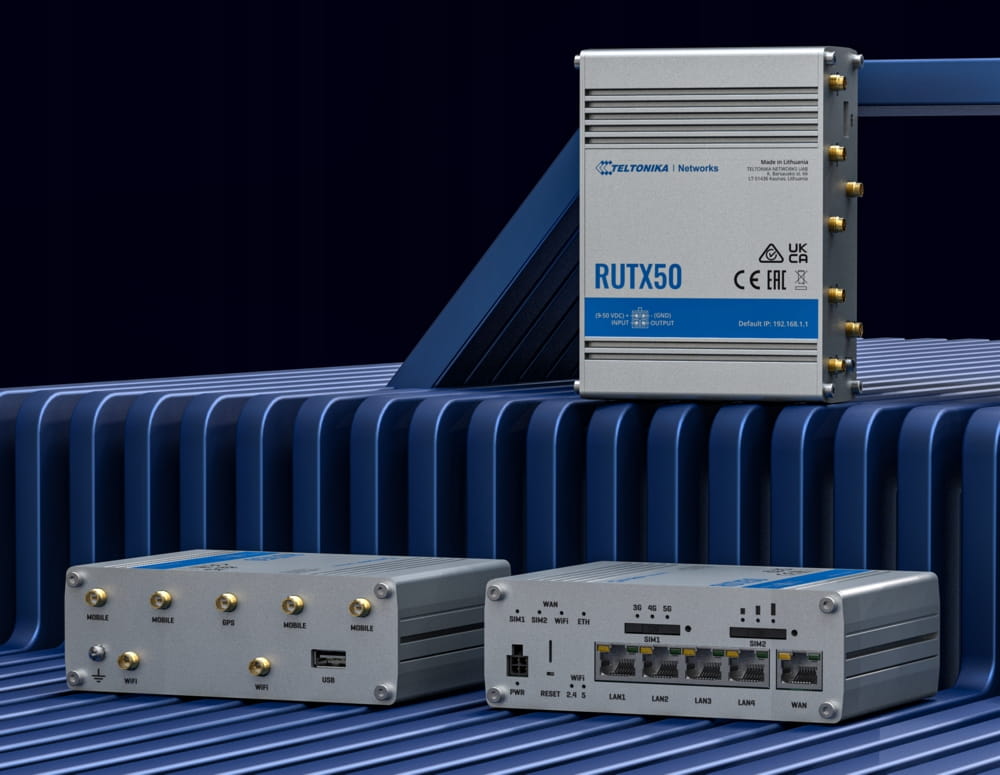

Profesjonalny Przemysłowy Router 5G Teltonika RUTX50

Dual SIM, 3x WAN, Dual Wi-Fi 2,4 GHz i 5 GHz, 5x RJ45 1000Mb/s, GPS (GNSS), Port USB

Przemysłowy Router 5G od europejskiego producenta Teltonika Networks

Teltonika RUTX50 to przyszłościowy, wielosieciowy router przemysłowy, oferujący komunikację mobilną 5G dla aplikacji o dużej szybkości i dużej ilości danych. RUTX50 jest wyposażony w 5 portów Gigabit Ethernet, WiFi, Dual-SIM, GPS, potężny procesor i oprogramowanie RutOS dla zaawansowanych rozwiązań sieciowych.

Kluczowe cechy Teltonika RUTX50

• Niezwykle wysokie prędkości w sieci komórkowej 5G do 3,3 Gb/s
• SA i NSA - obsługuje obie architektury w celu wykorzystania infrastruktury 5G
• Ultra-niskie opóźnienie - jednocyfrowe opóźnienie dla aplikacji o znaczeniu krytycznym
• Dual SIM - nieprzerwana komunikacja z automatycznym przełączaniem awaryjnym
• Wi-Fi 5 - dwuzakresowa przepustowość danych dla maksymalnie 150 klientów jednocześnie
• Wstecznie kompatybilny z technologiami sieci 4G (LTE CAT 20) i 3G

Wsparcie 5G, Dual SIM oraz 5 portów Gigabit

Komunikacja komórkowa 5G dual SIM w połączeniu z 5 portami Gigabit Ethernet i dwuzakresowym Wi-Fi umożliwia niezawodny transfer danych z bardzo niskimi opóźnieniami. Moc technologii 5G w połączeniu z szeroką gamą interfejsów i przemysłowych funkcji sprzętowych zapewnia możliwość dostosowania do przyszłych aktualizacji i rozszerzeń

System RutOS oraz zdalne zarządzanie RMS

RUTX50 jest dostarczany z systemem RutOS, który zapewnia zaawansowane funkcje bezpieczeństwa i wyspecjalizowane protokoły przemysłowe dla szerokiej gamy profesjonalnych scenariuszy aplikacji i jest kompatybilny z systemem zdalnego zarządzania (RMS), co zapewnia zoptymalizowane możliwości zdalnego zarządzania i monitorowania dużych flot urządzeń .

Zawartość opakowania

• Router RUTX50
• Zasilacz 18 W
• 4 x anteny mobilne (obrotowe, męskie SMA)
• 2 x anteny WiFi (mocowanie magnetyczne, męski RP-SMA, kabel 1,5 m)
• 1 x antena GNSS (przylepna, męska SMA, kabel 3 m)
• Kabel Ethernet (1,5 m)
• Adapter SIM
• QSG (skrócona instrukcja obsługi)
• Pudełko

Specyfikacja Techniczna:

MOBILE

• Mobile module: 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
• Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID.
• SMS/Call: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities
• USSD: Supports sending and reading Unstructured Supplementary Service Data messages
• Black/White list: Operator black/white list
• Band management: Band lock, Used band status display
• APN: Auto APN
• Bridge mode: Direct connection (bridge) between mobile ISP and device on LAN
• Passthrough: Gateway assigns its mobile WAN IP address to another device on LAN
• Multiple PDN: Possibility to use different PDNs for multiple network access and services

WIRELESS

• Wireless mode: 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates of up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
• WiFi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
• ESSID: ESSID stealth mode
• WiFi users: Up to 150 simultaneous connections
• Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, built-in customizable landing page
• Wireless mesh/roaming: Wireless mesh (802.11s), fast roaming (802.11r)

ETHERNET

• WAN: 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
• LAN: 4 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

NETWORK

• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
• Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
• Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall: Port forwards, traffic rules, custom rules
• DHCP: Static and dynamic IP allocation
• DDNS: Supported >25 service providers, others can be configured manually
• SSHFS: Possibility to mount remote file system via SSH protocol

SECURITY

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag-based VLAN separation
• Mobile quota control: Set up custom data limits for SIM card
• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

• OpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods
• OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
• GRE tunnel: GRE Tunnel
• IPsec: IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
• SSTP: SSTP client instance support
• STUNNEL: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
• DMVPN: Method of building scalable IPsec VPNs
• PPTP, L2TP: Client/Server services can run simultaneously, L2TPv3 support
• WireGuard: WireGuard VPN client and server support
• ZeroTier: ZeroTier VPN

MODBUS TCP SLAVE

• ID filtering: Respond to one ID in range [1;255] or any
• Allow remote access: Allow access through WAN
• Custom registers: MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality

MODBUS TCP MASTER

• Supported functions: 01, 02, 03, 04, 05, 06, 15, 16
• Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

MQTT GATEWAY

• Gateway: Allows sending commands and receiving data from MODBUS Master through the MQTT broker

DNP3

• Supported modes: TCP Master, DNP3 Outstation

DATA TO SERVER

• Protocols: HTTP(S), MQTT, Azure MQTT, Kinesis

IoT PLATFORMS

• Clouds of things: Allows monitoring of: Device data, Mobile data, Network info, Availability
• ThingWorx: Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
• Cumulocity: Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
• Azure IoT Hub: Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server

MONITORING & MANAGEMENT

• WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
• FOTA: Firmware update from server, automatic notification
• SSH: SSH (v1, v2)
• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
• CALL: Reboot, Status, Mobile data on/off, Output on/off
• TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• MQTT: MQTT Broker, MQTT publisher
• SNMP: SNMP (v1, v2, v3), SNMP trap
• JSON-RPC: Management API over HTTP/HTTPS
• MODBUS: MODBUS TCP status/control
• RMS: Teltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS

• CPU: Quad-core ARM Cortex A7, 717 MHz
• RAM: 256 MB (100 MB available for userspace)
• FLASH storage: 256 MB (80 MB available for userspace)

FIRMWARE / CONFIGURATION

• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
• FOTA: Update FW
• RMS: Update FW/configuration for multiple devices at once
• Keep settings: Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

• Operating system: RutOS (OpenWrt based Linux OS)
• Supported languages: Busybox shell, Lua, C, C++
• Development tools: SDK package with build environment provided

LOCATION TRACKING

• GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
• Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS
• NMEA: NMEA 0183
• Server software: Supports server software: TAVL, RMS
• Geofencing: Multiple configurable geofence zones

USB

• Data rate: USB 2.0
• Applications: Samba share, USB-to-serial, Modbus gateway
• External devices: Possibility to connect external HDD, flash drive, additional modem, printer
• Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

INPUT/OUTPUT

• Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
• Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA
• Events: SMS, Email, RMS
• I/O juggler: Allows setting certain I/O conditions to initiate event

POWER

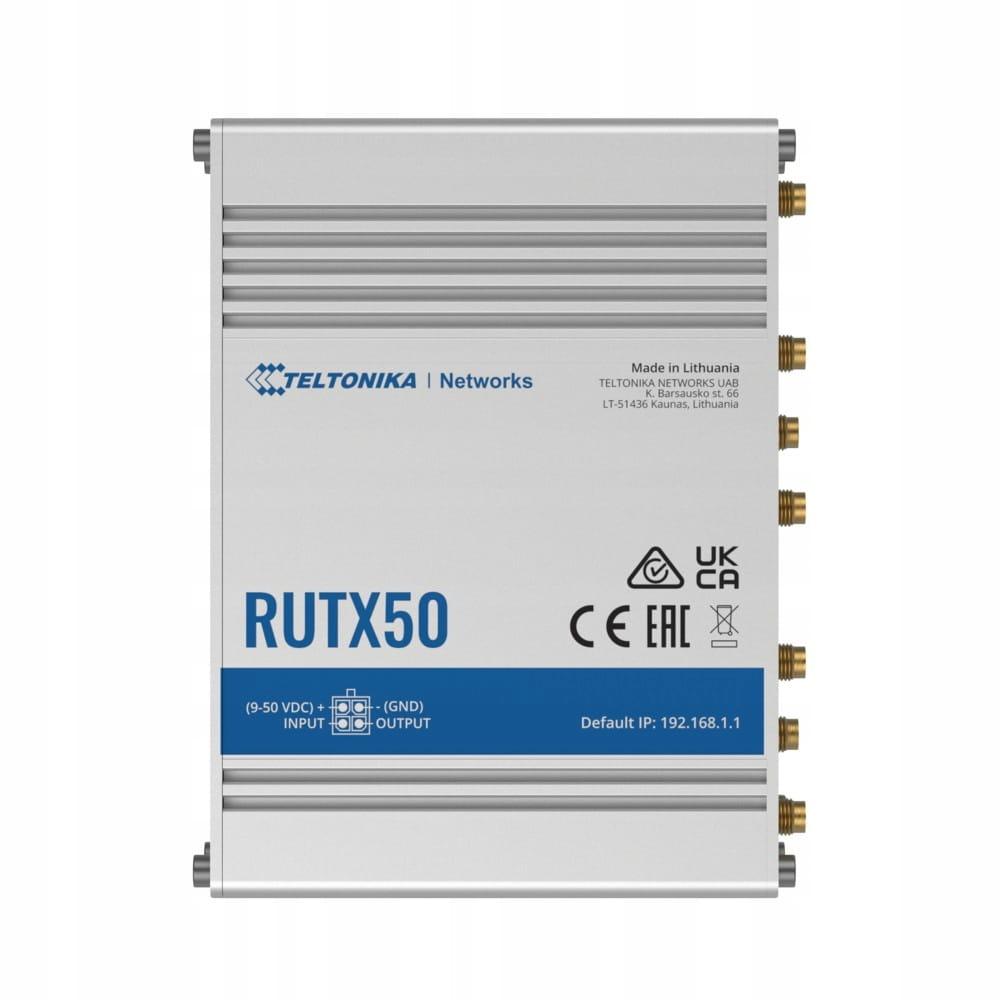

• Connector: 4-pin industrial DC power socket
• Input voltage range: 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
• PoE (passive): Mode B, LAN1 Port, 9 - 50 VDC
• Power consumption: Idle: <4 W, Max: <18 W

PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)

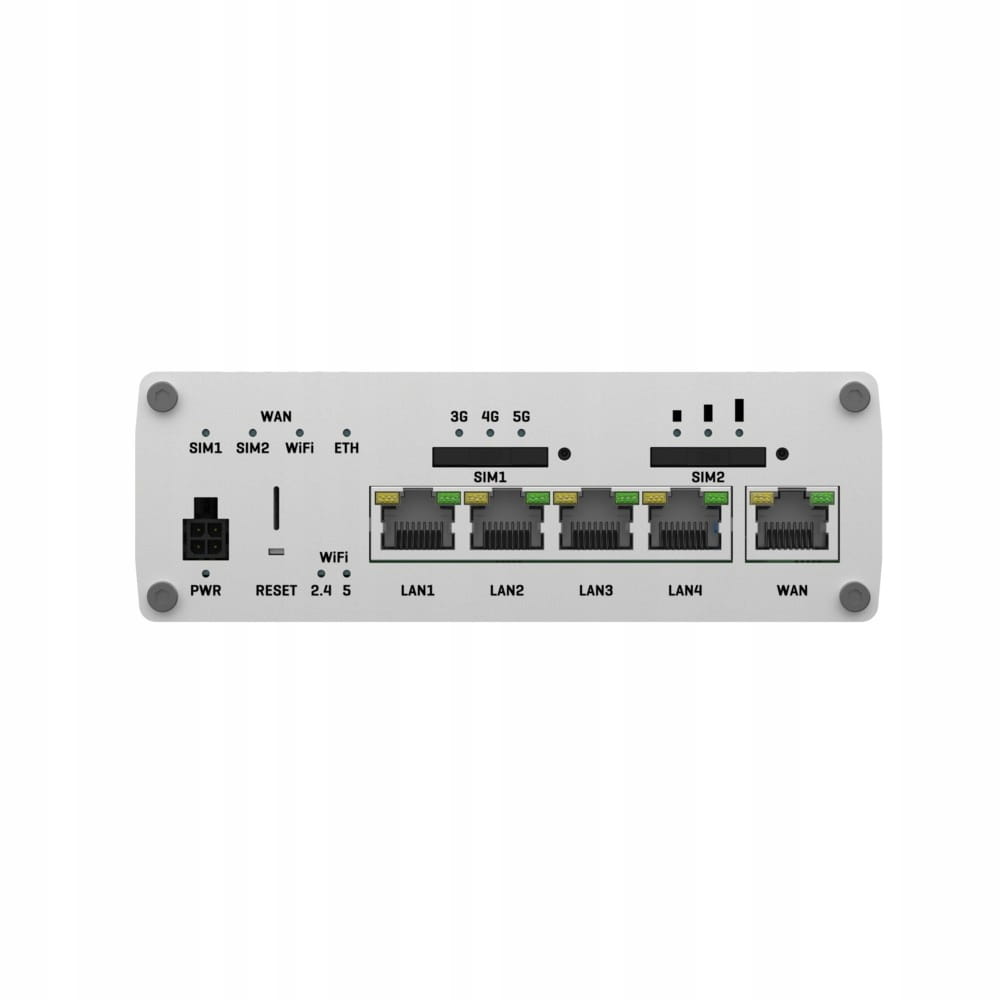

• Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
• I/Os: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs: 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs
• SIM: 2 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
• Power: 1 x 4-pin DC power connector

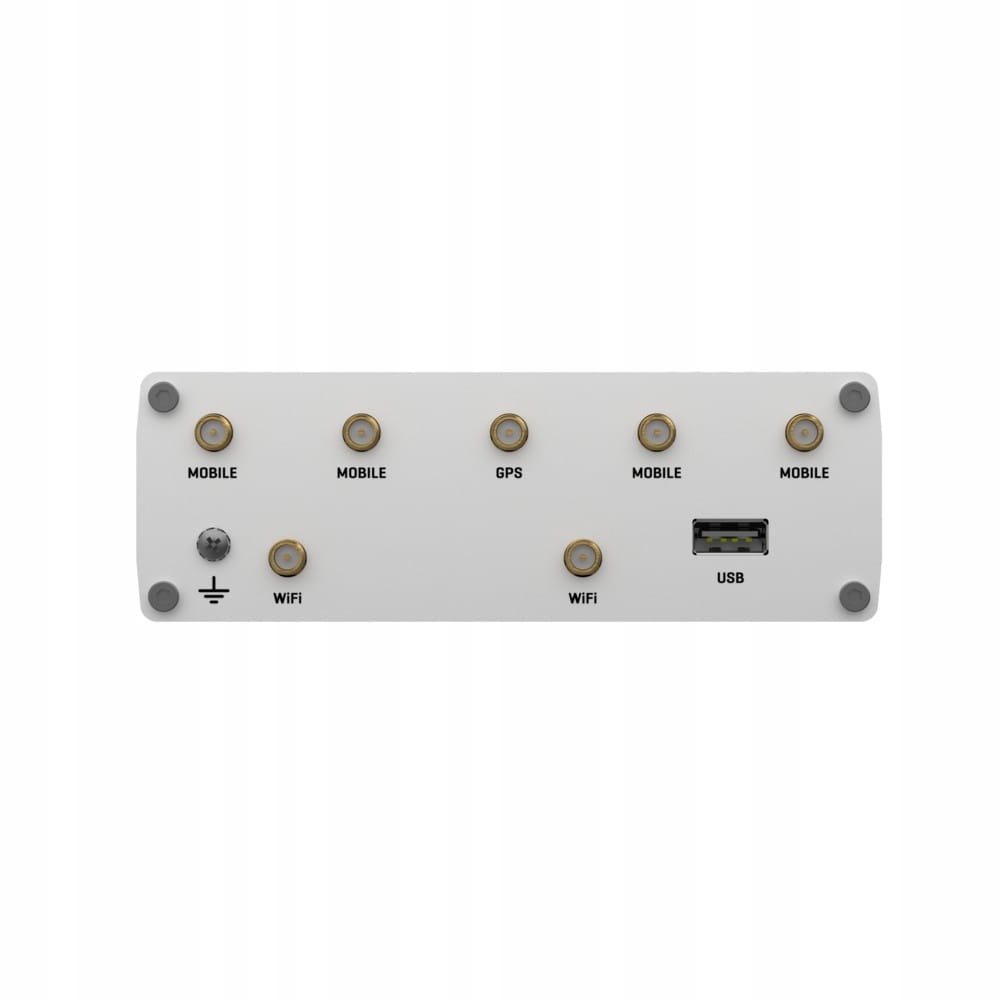

• Antennas: 4 x SMA for Mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
• USB: 1 x USB A port for external devices
• Reset: Reboot/User default reset/Factory reset button
• Other: 1 x Grounding screw

PHYSICAL SPECIFICATION

• Casing material: Aluminum housing
• Dimensions (W x H x D): 132 x 44.2 x 95.1 mm
• Weight: 533 g

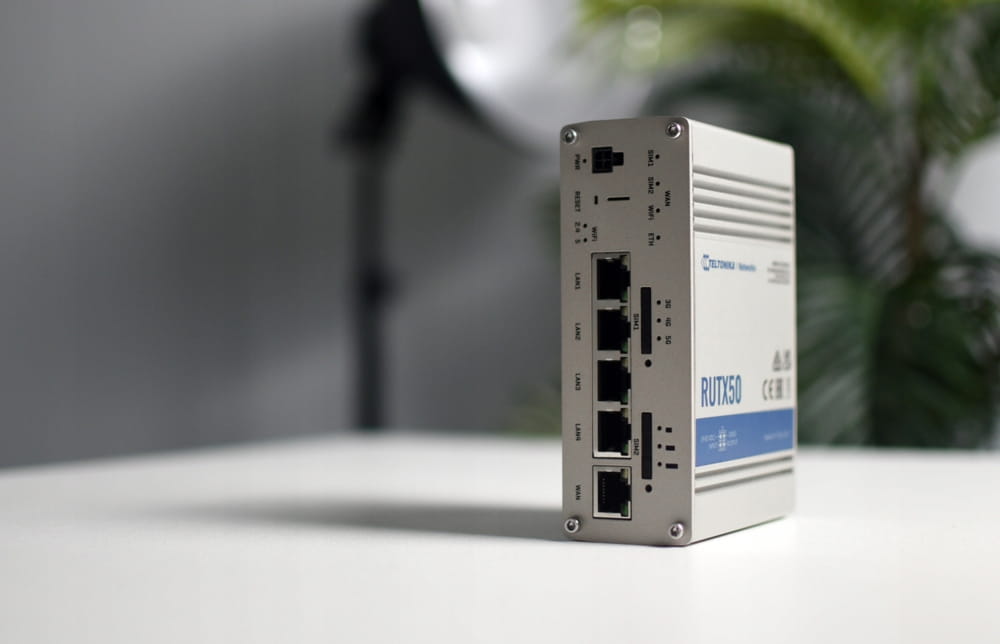

• Mounting options: DIN rail (can be mounted on two sides), flat surface placement

OPERATING ENVIRONMENT

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 10 % to 90 % non-condensing
• Ingress Protection Rating: IP30
